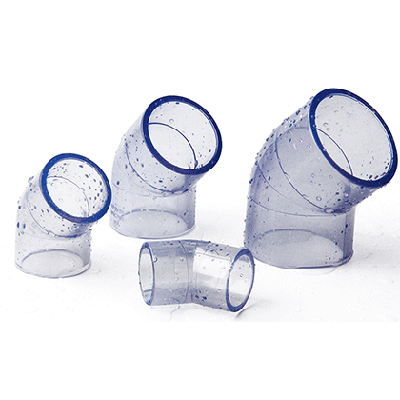

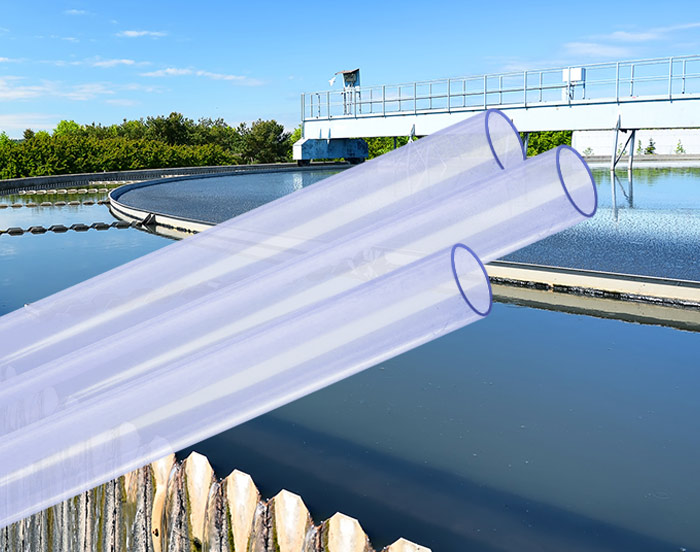

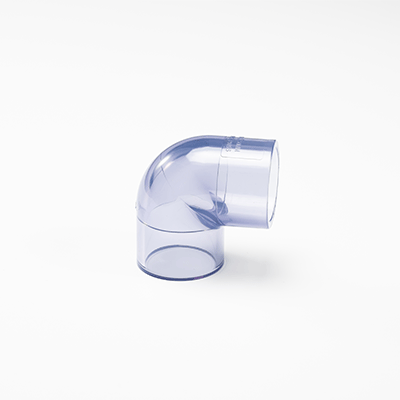

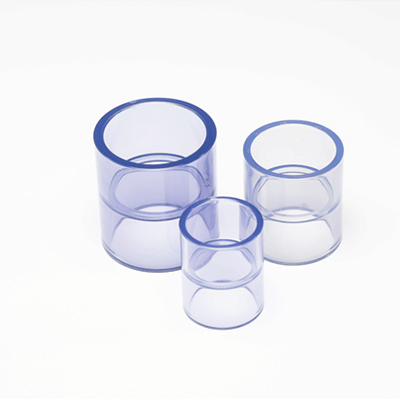

Clear PVC Fittings are used with the transparent pipe, which ensures the whole pipeline system to reach good visibility and reduce visual blind spots; the clear PVC pipe fittings are bonded with transparent plastic pipe with transparent glue so the whole process is convenient and quick construction, the bonding area has good visibility and sealing performance to ensure the chemical liquids won't leak or evaporate through the connection as well. The transparent pipe fittings schedule 80 and schedule 40 clear PVC pipe are both available.
The schedule is abbreviated as Sch and is called the pipe table number. The clear PVC pipe fittings table number is the ratio of the clear plastic pipe fittings design pressure to the allowable stress of the material at the design temperature multiplied by 1000 and rounded. That is Sch＝P/[σ]t×1000. ANSI B36.10 wall thickness grade: Sch10, Sch20, Sch30, Sch40, Sch60, Sch80, Sch100, Sch120, Sch140, Sch160 ten grades. The difference between schedule 40 clear rigid PVC pipe and clear rigid PVC pipe schedule 80 is the thickness, schedule 80 is thicker than schedule 40.
The clear PVC pipe and clear pipe fittings have corrosion resistance, high impact strength, and low fluid resistance (the flow rate is 30% higher than that of cast iron pipes of the same diameter). Clear PVC pipe and fittings are resistant to aging and have a long service life.
The weight of clear pipe fittings is only 1/7 of the cast iron pipe of the same caliber, which can greatly accelerate the progress of the project and reduce the construction cost.
The inner wall of clear PVC pipe fittings is smooth, the drainage is smooth, and the pipeline is not easy to be blocked. The inspection port has a unique design and is easy to operate without any tools.
Save construction costs. The overall cost of clear plastic pipe fittings is lower than that of using cast iron pipes of the same specification, and the maintenance cost is also lower.
