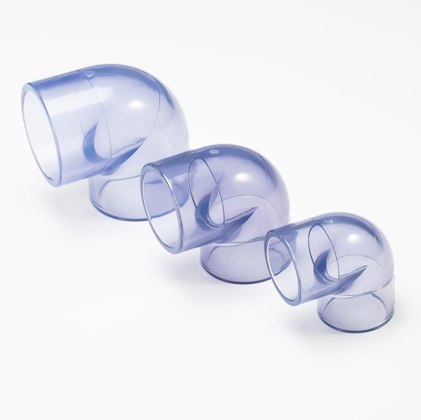

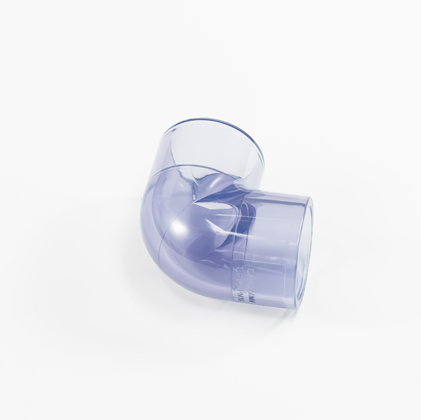

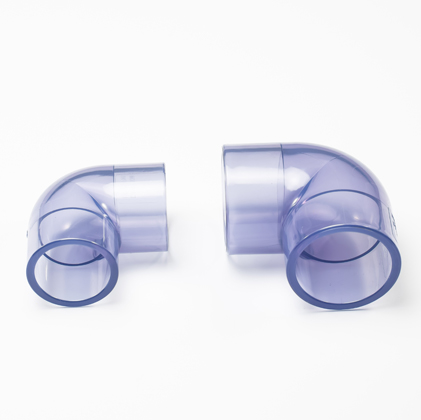

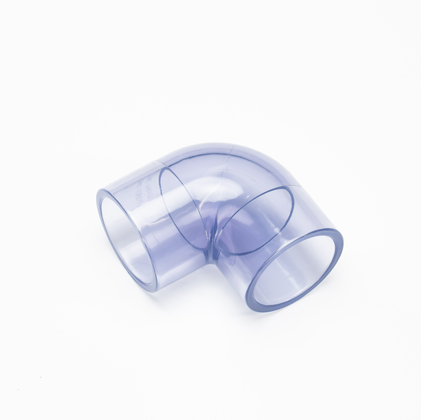

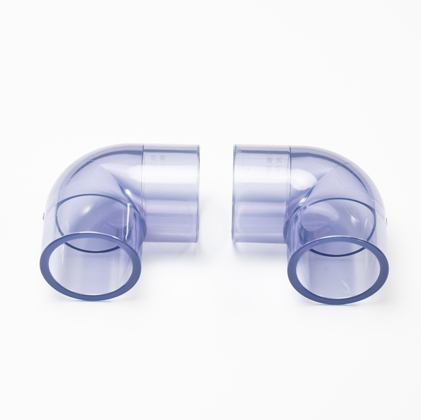

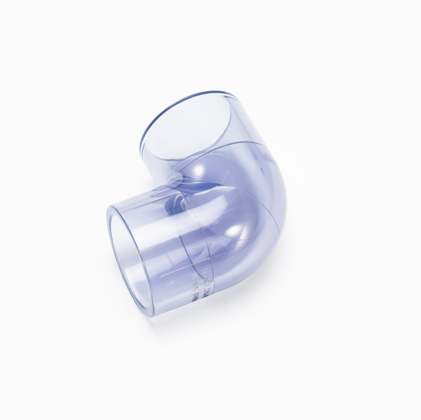

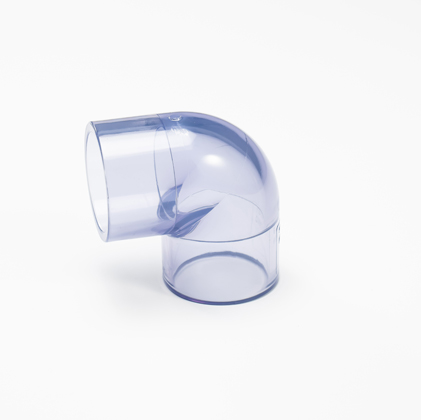

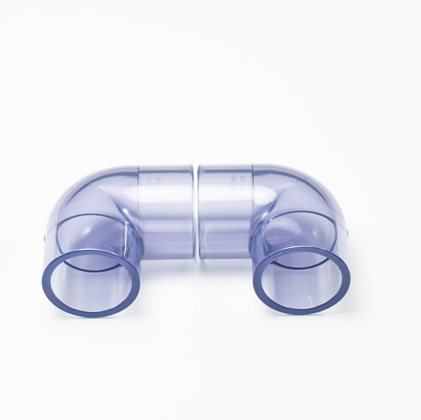

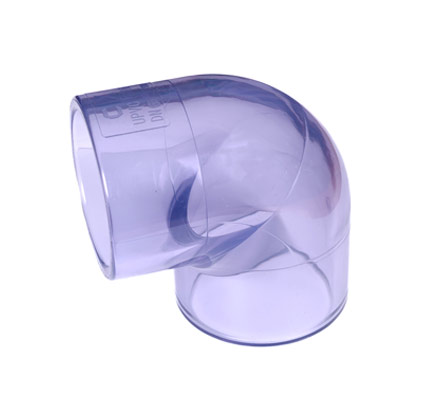

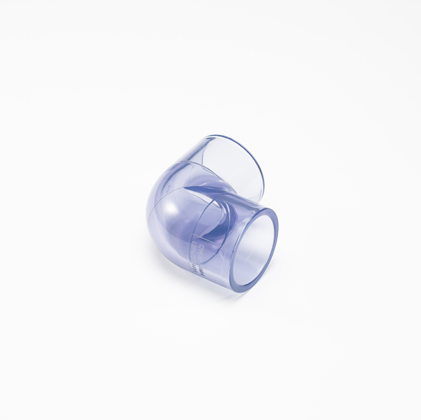

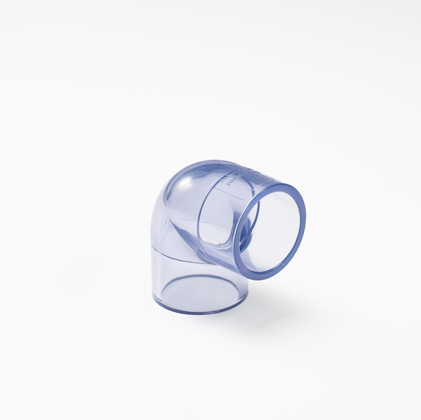

VERYGREEN can offer high-quality the Clear PVC Elbow to meet your different needs.

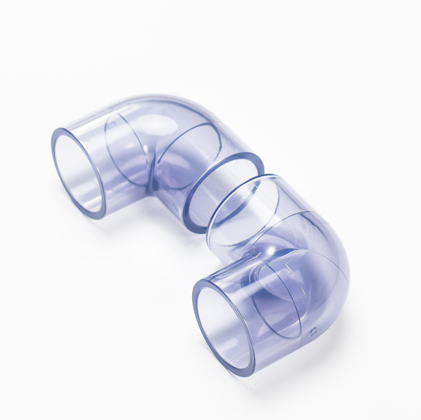

Clear PVC 90 degree elbows are widely used in PVC irrigation systems, usually at 90-degree PVC elbow angles, which have the effects of changing the direction of the pipeline. Sometimes the clear plastic elbow can also be used in combination of clear plastic pipe fittings to achieve a greater effect of changing the direction of the pipeline.
The use of glue bonding, convenient and fast construction in clear pvc elbow.
The bonding area of clear pvc elbow is also transparent and visible, avoiding blind spots on vision.
The bonding pressure of clear pvc elbowis enough, which does not affect the normal use and will not lead to the pressure drop of the whole pipeline system.
Crystal Clear Transparency:
Like the clear PVC tee and clear PVC coupler, VERYGREEN Clear PVC Elbow boasts exceptional clarity, allowing for easy visual inspection of fluid flow.
Precision Craftsmanship:
Crafted with precision, these clear acrylic elbows adhere to strict dimensional standards, ensuring seamless integration in plumbing systems.
Rugged Durability:
Designed for longevity, VERYGREEN Clear PVC Elbow withstands diverse environmental conditions, minimizing the need for frequent replacements.
Chemical Resistance:
The Clear PVC material exhibits excellent chemical resistance, making these clear acrylic elbows suitable for applications with corrosive substances.
Ease of Installation:
Engineered for user convenience, these clear pipe fittings are easy to install, reducing both time and effort during the integration process.
Versatile Applications:
VERYGREEN clear plastic elbow finds applications across a broad spectrum, from residential plumbing to industrial fluid handling scenarios.
Eco-Friendly Material:
Committed to sustainability, these clear acrylic elbows are crafted from environmentally friendly Clear PVC material.
Cost-Effective Solution:
Offering a blend of quality and cost-effectiveness, VERYGREEN Clear PVC Elbow provides a reliable and economical solution for fluid conveyance needs.
The main application areas of clear PVC elbow are bridges, tunnels, etc. The bridge itself has a certain slope, and it is necessary to use unconventional degree elbows to maintain the beauty of the drainage network outside the bridge. Conventional PVC clear acrylic elbows use molds for one-time casting and molding. The cost of the clear PVC fitting is relatively low. Since the hot bending and welding are mainly manual, the price is relatively high.
ASTM

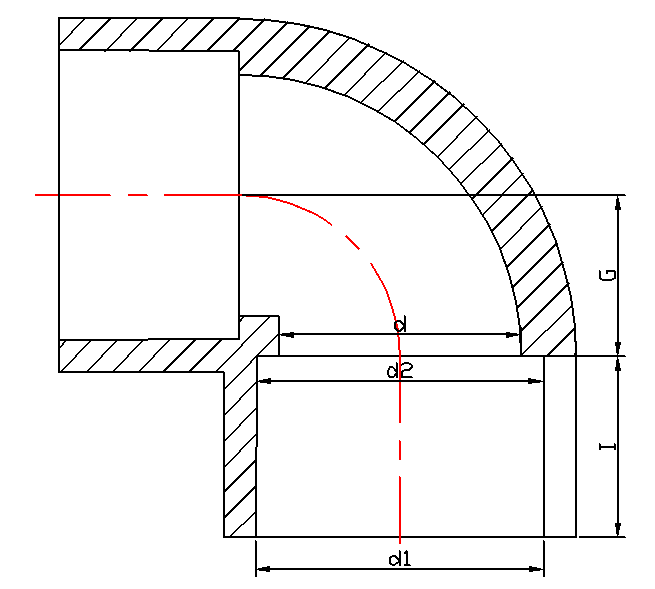

| SIZE | d/mm | d1/mm | d2/mm | I/mm | G/mm |
| 1/2" | 16.0 | 21.54 | 21.23 | 24.0 | 13.0 |
| 3/4" | 22.0 | 26.87 | 26.57 | 27.0 | 15.0 |
| 1" | 30.0 | 33.65 | 33.27 | 30.0 | 18.0 |
| 1 1/4" | 38.0 | 42.42 | 42.04 | 34.0 | 23.0 |
| 1 1/2" | 44.0 | 48.56 | 48.11 | 37.0 | 26.0 |
| 2" | 54.0 | 60.63 | 60.17 | 41.0 | 32.0 |
| 2 1/2" | 67.0 | 73.38 | 72.85 | 46.5 | 39.0 |
| 3" | 82.0 | 89.31 | 88.70 | 50.0 | 47.0 |
| 4" | 106.0 | 114.76 | 114.10 | 60.0 | 59.0 |
| 5" | 133.0 | 141.81 | 141.00 | 77.0 | 76.5 |
| 6" | 158.0 | 168.83 | 168.00 | 79.0 | 89.0 |
DIN
| SIZE | D/mm | d/mm | d1/mm | d2/mm | I/mm |
| DN15 | 27.0 | 17 | 20.30 | 20.10 | 16.0 |
| DN20 | 33.0 | 23 | 25.30 | 25.10 | 20.0 |
| DN25 | 41.0 | 29 | 32.30 | 32.10 | 24.0 |
| DN32 | 50.0 | 37 | 40.30 | 40.10 | 28.0 |
| DN40 | 61.0 | 47 | 50.30 | 50.10 | 32.0 |
| DN50 | 75.0 | 60 | 63.30 | 63.10 | 38.0 |
| DN65 | 92.0 | 72 | 75.30 | 75.10 | 44.0 |
| DN80 | 110.6 | 87.1 | 90.30 | 90.10 | 51.0 |
| DN100 | 127.0 | 106.1 | 110.40 | 110.10 | 61.0 |
| DN125 | 162.0 | 133 | 140.50 | 140.20 | 77.0 |
| DN150 | 186.0 | 154 | 160.50 | 160.20 | 86.0 |
Exceptional Clarity:
VERYGREEN's Clear PVC Elbow offers unparalleled clarity, allowing for easy visual inspection of fluid flow. The crystal-clear material ensures transparency, making it an ideal choice for applications where monitoring is crucial.
Precision in Manufacturing:
Our clear PVC acrylic elbows are crafted with precision, adhering to strict dimensional standards. This precision guarantees a seamless fit, promoting efficient fluid conveyance in plumbing and industrial systems.
Durability and Longevity:
VERYGREEN, a trustworthy clear PVC pipe manufacturer, prioritizes durability, ensuring that clear plastic elbow withstand the rigors of various environments. The robust construction and quality materials contribute to their longevity, minimizing the need for frequent replacements.
Chemical Resistance:
The Clear PVC material used in our clear acrylic elbows exhibits excellent resistance to a wide range of chemicals. This makes VERYGREEN Clear PVC Elbows suitable for applications where exposure to corrosive substances is a concern.
Easy Installation:
Designed with user convenience in mind, VERYGREEN Clear PVC Elbows are easy to install. Their user-friendly features facilitate quick and hassle-free integration into plumbing systems, reducing installation time and effort.
Versatility in Applications:
VERYGREEN clear pvc 90 degree elbow caters to a broad spectrum of applications, from residential plumbing to industrial processes. Their versatility makes them suitable for a variety of fluid handling scenarios.
Environmentally Friendly:
Committed to sustainability, VERYGREEN ensures that its tube transparent elbow is environmentally friendly. The manufacturing process aligns with eco-conscious practices, providing a responsible choice for customers.
Cost-Effective Solution:
Choosing VERYGREEN Clear PVC Elbows not only guarantees quality but also presents a cost-effective solution. Their durability and long lifespan contribute to reduced maintenance costs, making them an economical choice for various industries.
